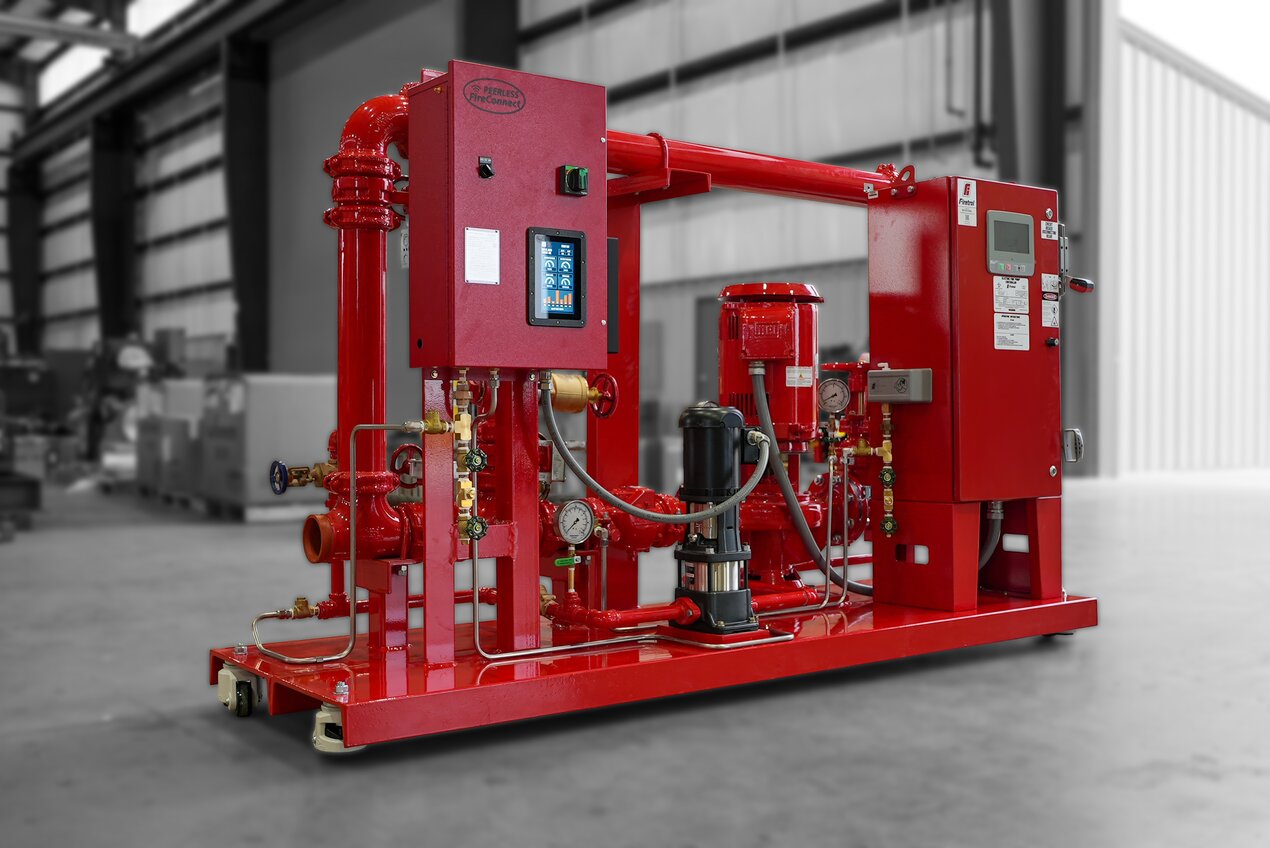

Compact In-line Fire Fighter Packaged System
The Compact In-line Fire Fighter packaged fire pump system is pre-engineered and combines all major equipment and accessories on a single skid that fits through a standard door frame. These systems greatly reduce the field construction and costs required to get your facility up and running quickly.
Applications
- Commercial Building
- Industrial Facilities
- Energy Facilities
- Oil & Gas Facilities
- Power Plants
- Offshore Applications
Specs
Capacities Up to 1,500 gpm (340 m3/hr)
Head Up to 406 feet (123 m)
Pressure Up to 175 psi (12 bar)
Max Horsepower Up to 125 hp (93 kW)
Ambient Temperature Range Ambient within the limits for satisfactory equipment operation
Drives Electric motors
Liquids Potable/non-potable water, salt water
Pump Materials Cast iron, bronze fitted
Features
The Compact In-line Fire Fighter packaged system arrives ready to install and is narrow enough to fit through a standard size door frame. The pump, driver, controller and accessories are mounted on a common base. The package comes complete with interconnecting piping and wiring. Preconstruction by our highly experienced team eliminates complex and costly field installation issues. In-house fabrication gives us the ability to customize a system and assume complete unit responsibility, which means that you have only one supplier to contact.
All pump packages meet the requirements of UL, ULC, FM, NFPA 13, and NFPA 20. The Compact In-line Fire Fighter package can produce up to 1,500 gpm. Head up to 406 feet with as much as 175 psi. Pumps are powered with electric motors and the fire pump is cast iron with bronze fittings. Peerless Pump furnishes fittings and accessories per NFPA 20. Peerless Pump can configure the package with a test header only, with a flow meter and test header, or as a city bypass that is with or without the test header and flow meter.
Benefits
The Power of ONE — packages are engineered and assembled by a highly experienced team that is specialized in fire pump systems.
- ONE source for a streamlined supply chain, no need to coordinate multiple vendors
- ONE dedicated project manager throughout the entire process from initial design to startup
- ONE highly experienced design team
- ONE specialized assembly team
- ONE documentation package for all of the equipment
- Peerless Pump is an OEM fire pump packager, giving us complete control over the pump and skid design
All equipment and accessories are mounted on a common base, ready to install upon arrival at site.
- Assembled in a controlled environment, avoiding weather delays associated with field construction
- Ensures that all components are compatible and installed correctly
- Eliminates complex and costly field installation issues associated with component system installations.
